機器人打磨單元
SKU:3
產品詳情
特點/CHARACTERISTIC
1、 機器人打磨組合是以一臺工業機器人全自動控制、可重復編輯、能在三維空間里完成各種打磨作業；
2、 發那科機器人；
3、 多個可用磨削接觸輪，在磨削過程中，系統可控制砂帶轉速，自動調整砂帶的張緊力，自動選擇當前可用接觸輪。
4、 自動位置補償功能，在磨削過程中，可自動探測接觸輪的磨損情況，自動調整接觸輪的位置，從而補償磨損帶來的位置誤差；
5、 具有砂帶斷裂報警功能，有效杜絕砂帶斷裂后機器人空轉帶來的危險與時間浪費；
6、 提供自動離線編程軟件，減少編程時間；
7、 我們擁有專業的工藝編程程序員，做到真正的技術支持，幫助您解決高難度拋光任務，減少生產時間；
8、 專業的機器人夾具設計團隊，采用更加專業的夾具設計能夠大大地提高拋光效果。
1. The grinding robot machine is
automatically controlled by an industrial robot, can be reprogrammed, and to
achieving various kinds of grinding jobs in 3D space;
2. FUNAC robotic arm

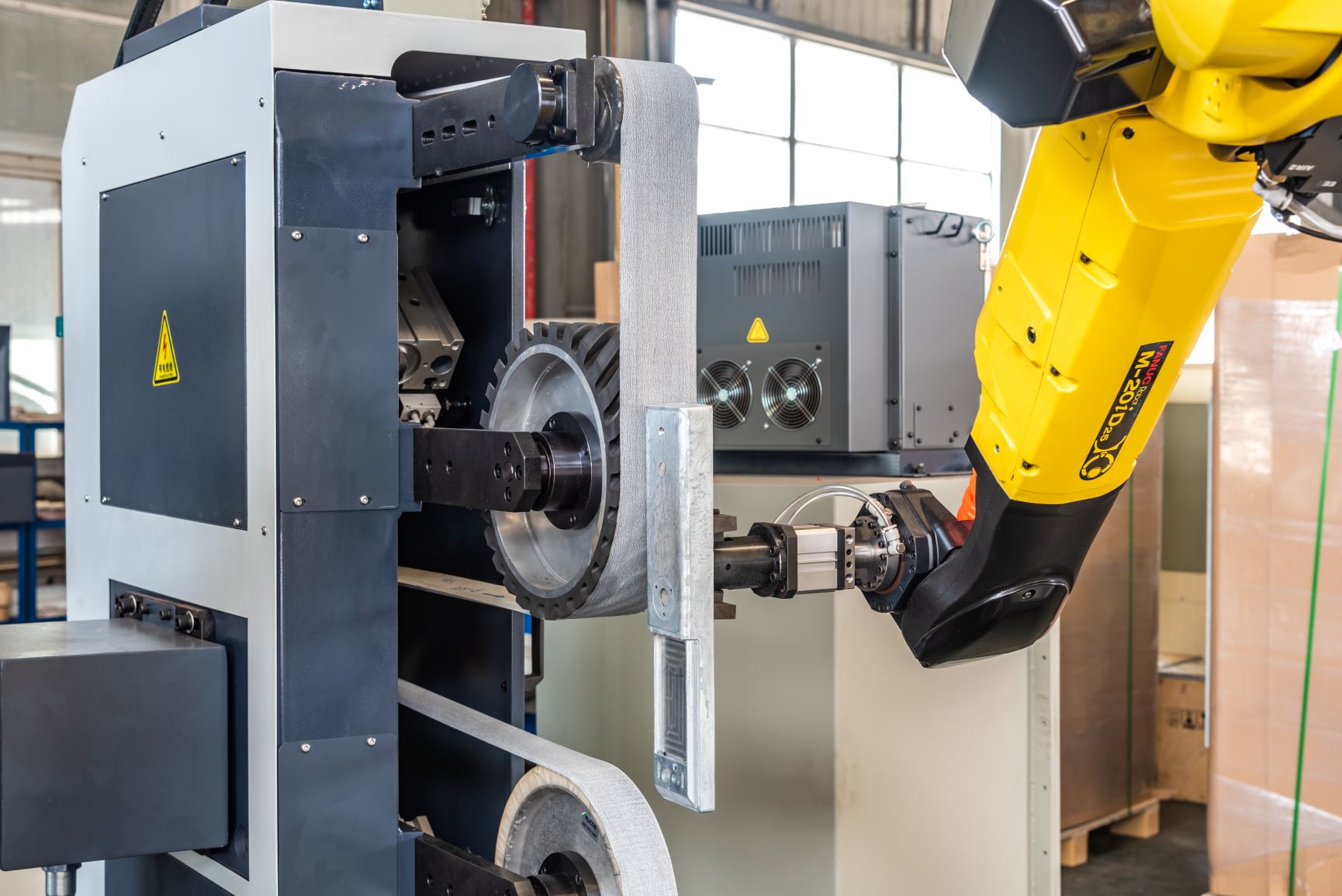

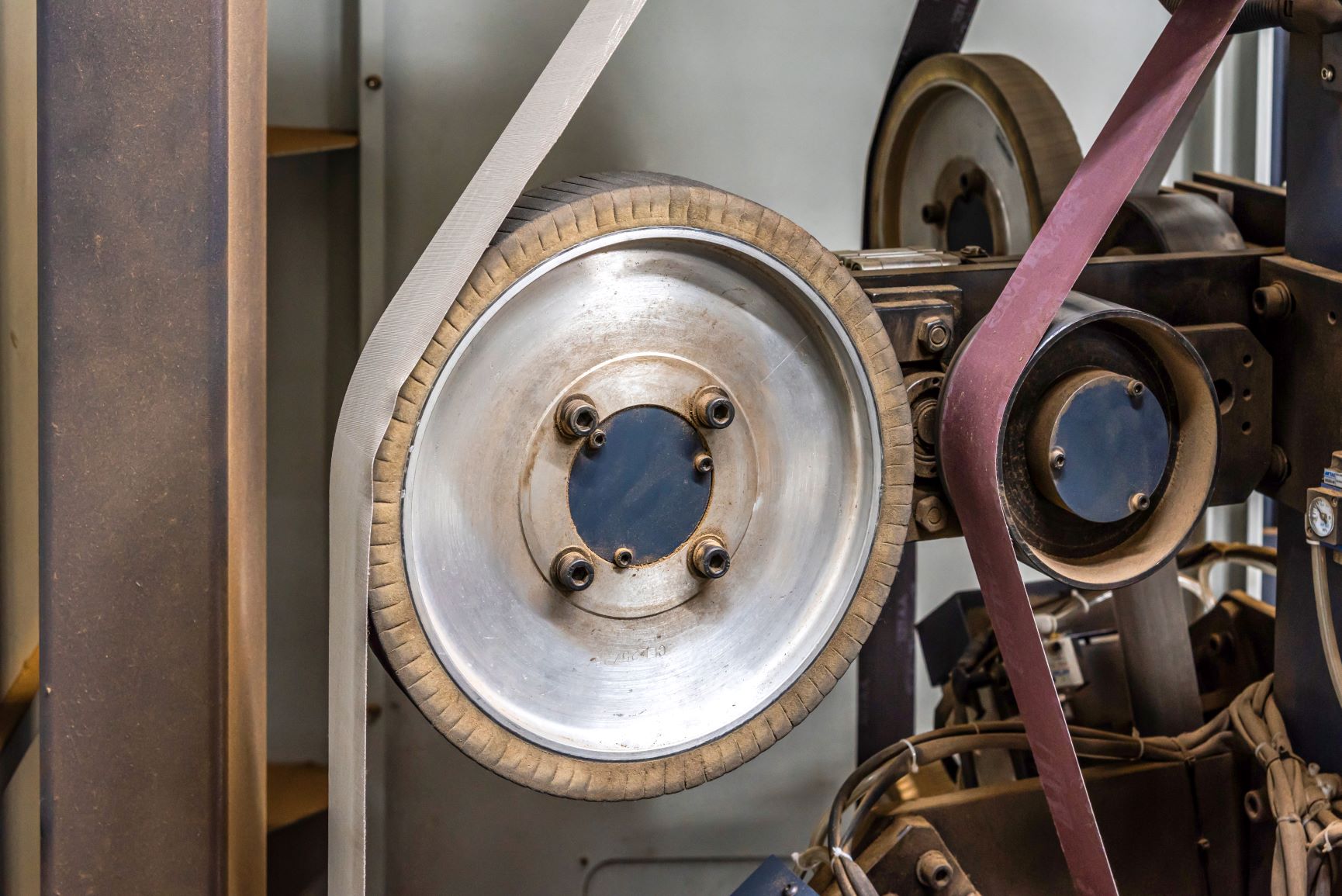

3. The grinding machine has
several grinding touches wheels, and in the process of grinding, the robot can
control the rotating speed of the grinding machine, automatically adjust the
tension of the sand belt, and choose the current available touch wheels.
4. The machine has function of
automatic position compensation. In the process of grinding, the machine detects
the position of the wheels and automatically adjust the position of the wheels
to compensate the position deviation of the wheels.
5. The machine has the warning
function of the breakage of sand belt, effectively get rid of the danger and
waste of the idle running of the robot when the sand belt breaks.
6. Offline program software for
automatic grinding.
7. We have professional programmer
for grinding technical to ensure fully technical support and help you resolve
the difficulty of grinding/polishing task, reducing the production time.

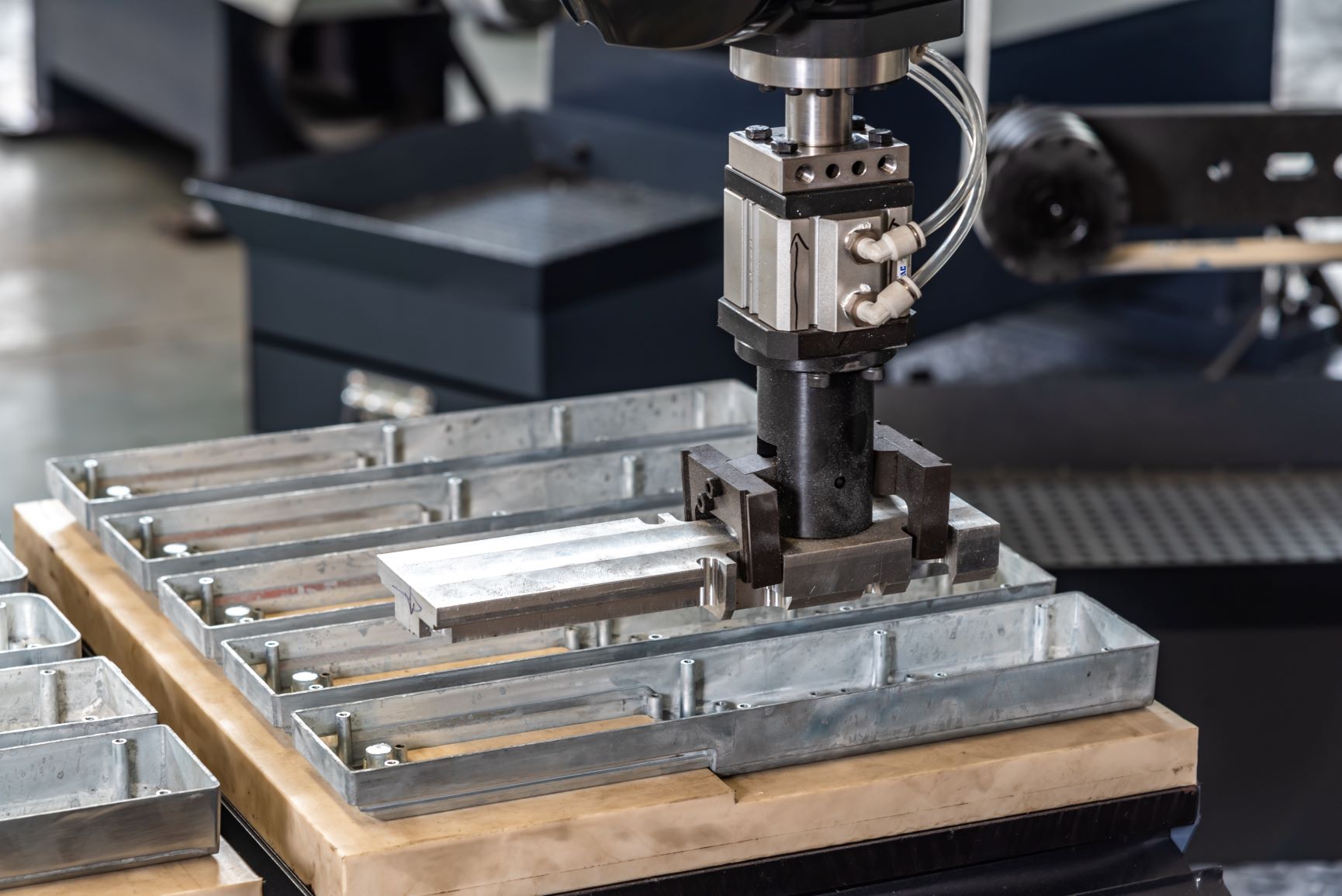

8. Professional team to design the
fixtures and professional fixtures design can increase the grinding/polishing
effect dramatically.
配置標準
Standard Components
A. FANUC Intelligent robot(1set)
發那科機械手一臺

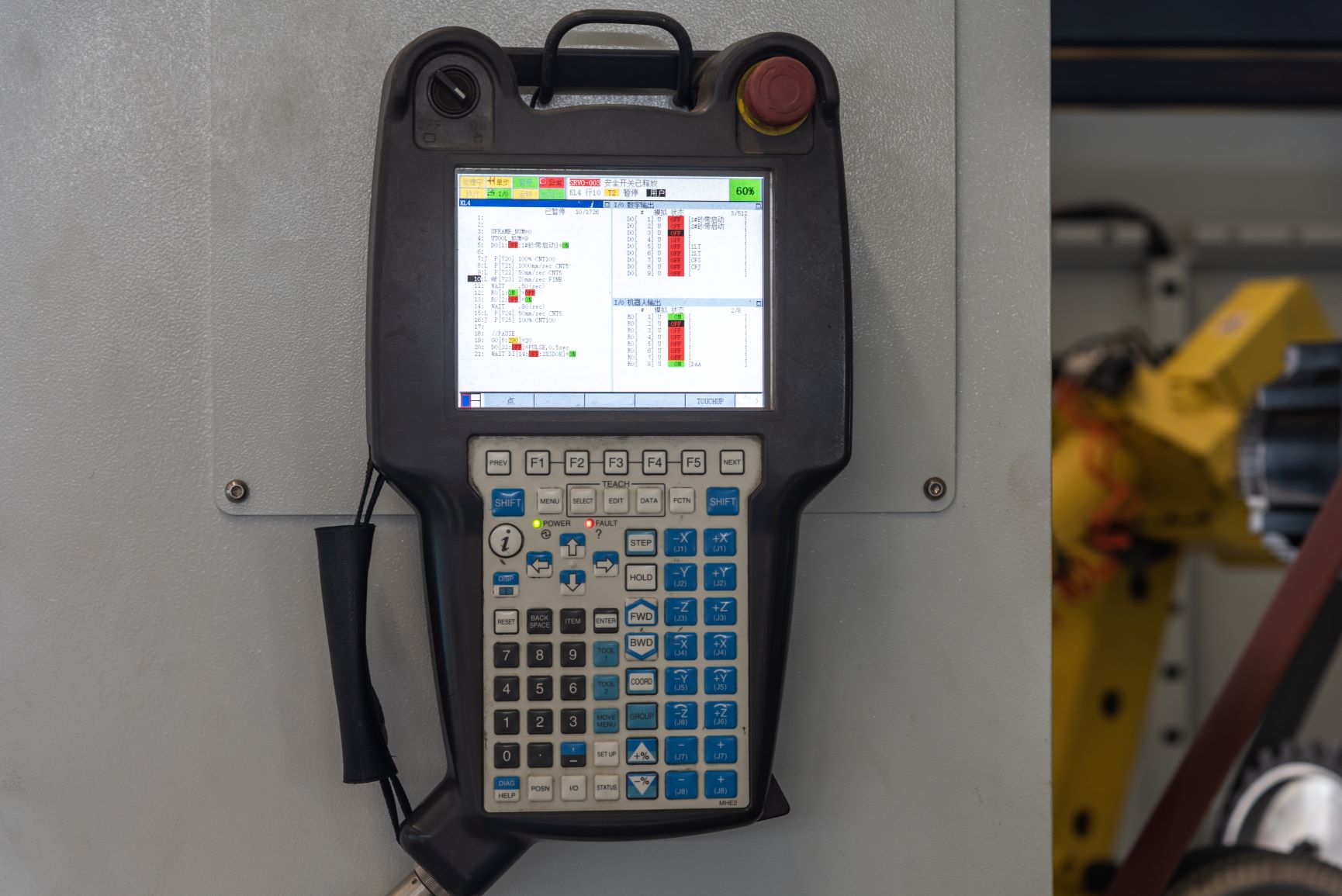

B. Robot Controller
機械手控制系統
C. Electric control System
電氣控制系統
D. Sand Belt Polishing Machine
(quantity according to process requirements)
砂帶拋光機一套（數量根據工藝要求）

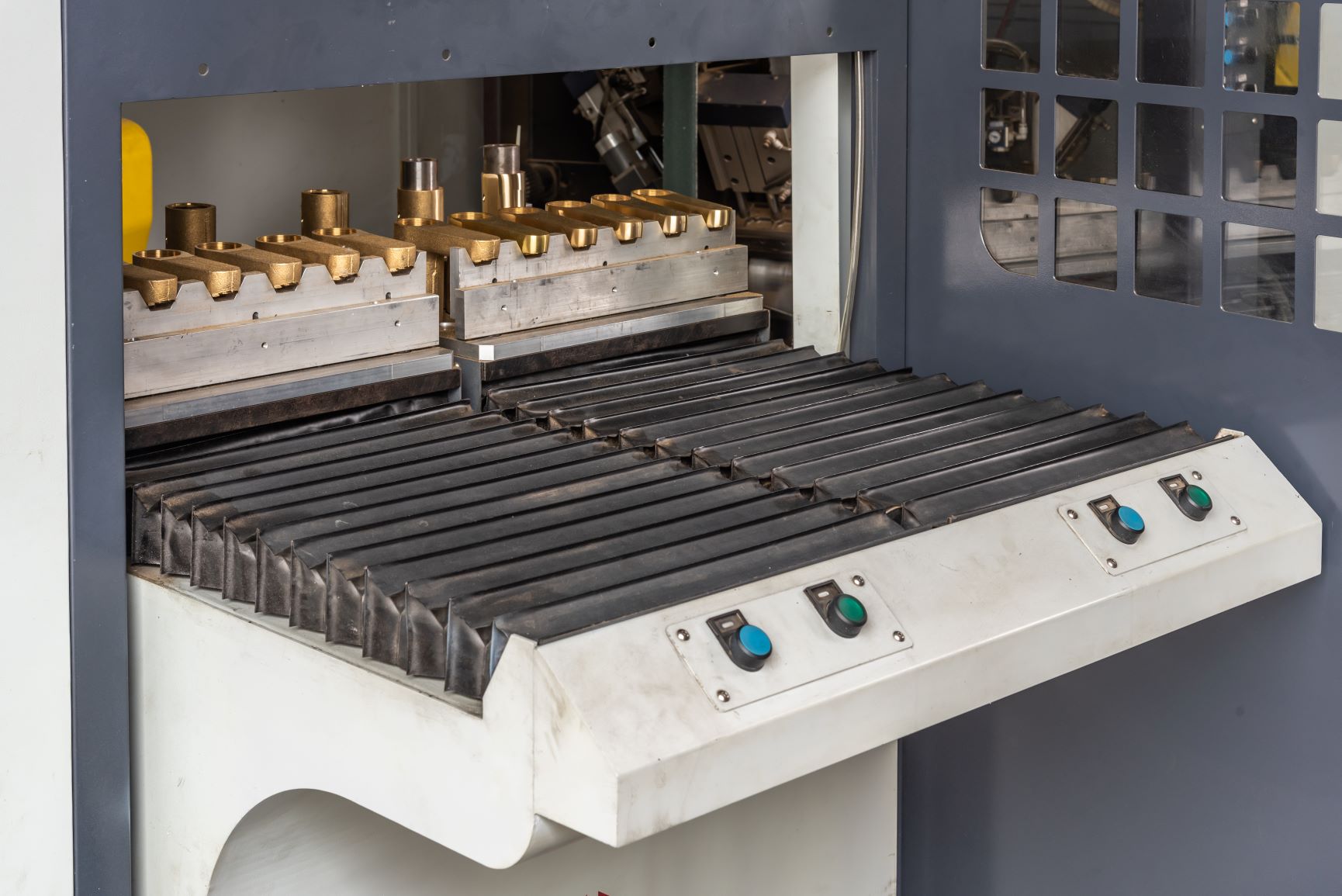

E. Double Station Feed Table
(1set)
雙工位送料臺

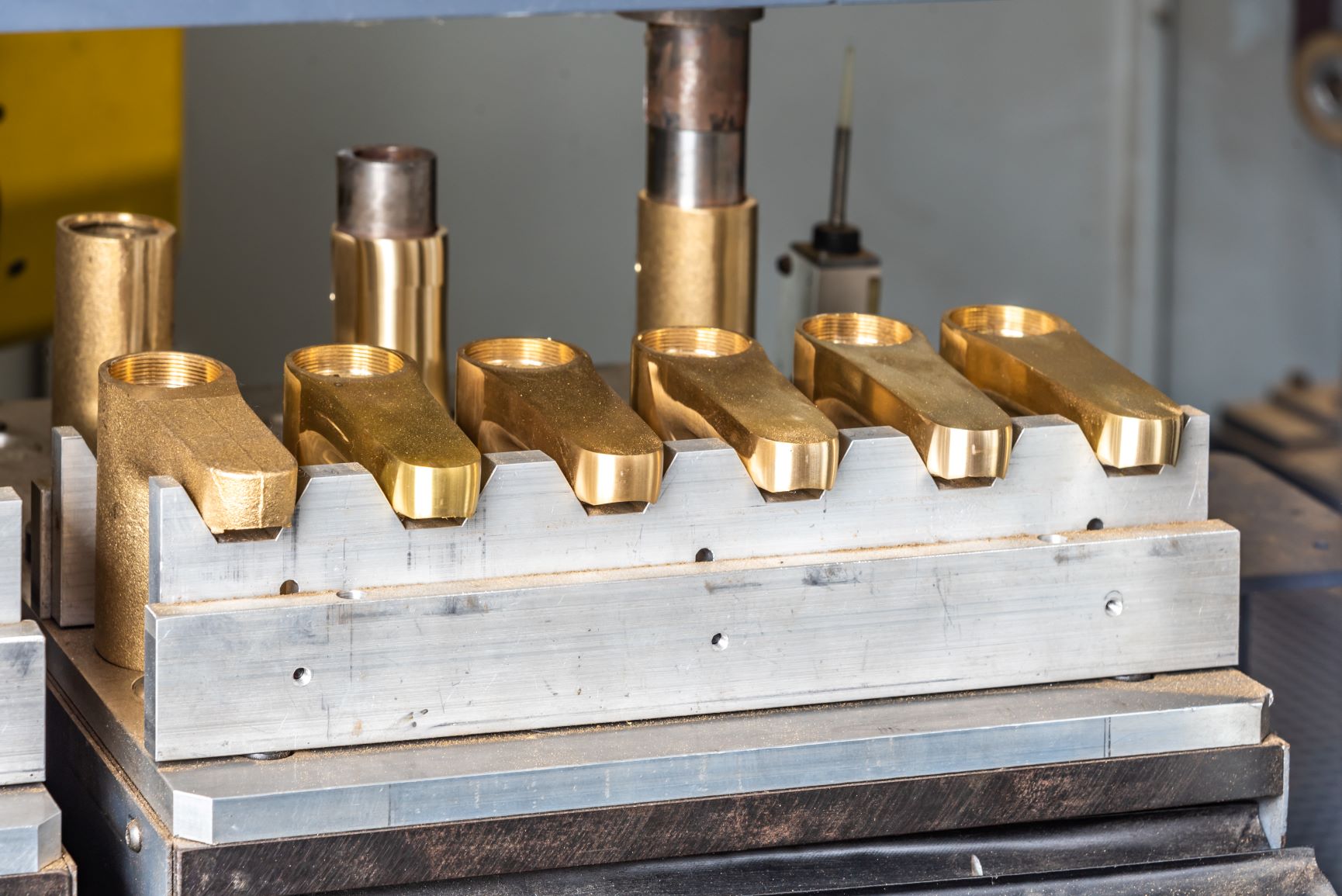

F. Discharge Tray(Two sets for
each product,customized according to the sample)
料盤(每個產品兩套，根據樣品定制)

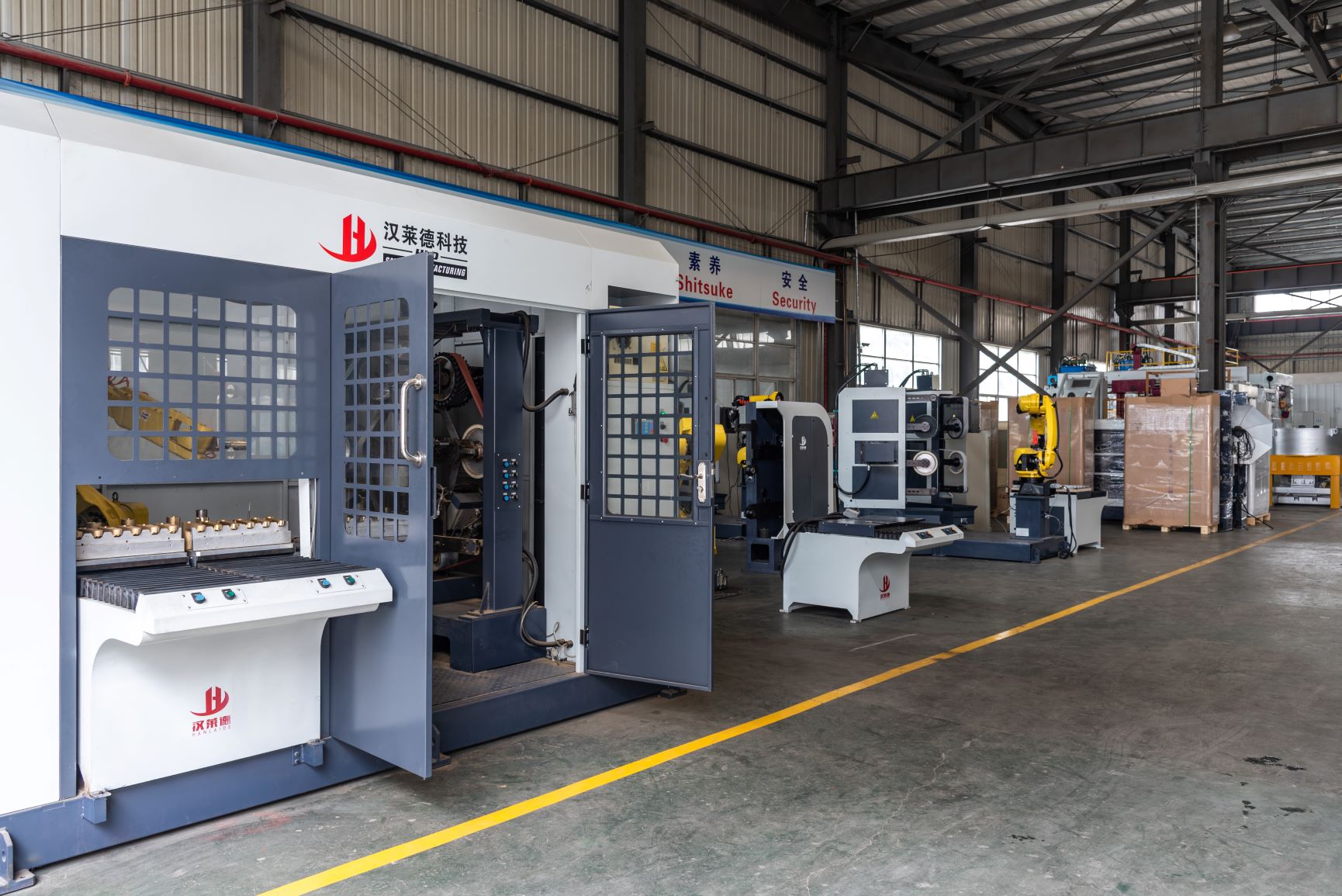

G. Fully enclosed machine cabinet; Adopting
soundproof and fireproof material to eliminate dust pollution
全封閉設備防護罩, 采用隔音防火材料，杜絕粉塵污染
技術參數
TECHNICAAL PARAMETERS
|
Code
|
Item
|
12G
|
20G
|
35G-I
|
35G-II
|
50G
|
210G
|
|
1
|
Robot
Cell
|
FUNAC
|
FUNAC
|
FUNAC
|
FUNAC
|
FUNAC
|
FUNAC
|
|
2
|
Model
|
M-10iD/12
|
M-20iA
|
M-20iA/35M
|
M-20iA/35M
|
M-70iC/50E
|
R-2000iC_210F
|
|
3
|
Voltage
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
4
|
Power
|
9KW
|
9KW
|
13KW
|
19KW
|
20.5KW
|
20.5KW
|
|
5
|
Grinding
Machine Qty.
|
2
|
2
|
2
|
3
|
3
|
3
|
|
6
|
Sand
Belt Qty.
|
4
|
4
|
4
|
6
|
6
|
6
|
|
7
|
Sand
belt Dimensions
|
3000mm
|
3000mm
|
3600mm/4000mm
|
3600mm/4000mm
|
3600mm/4000mm
|
3600mm/4000mm
|
|
8
|
Feed
Table
|
1
|
1
|
1
|
1
|
1
|
1
|
